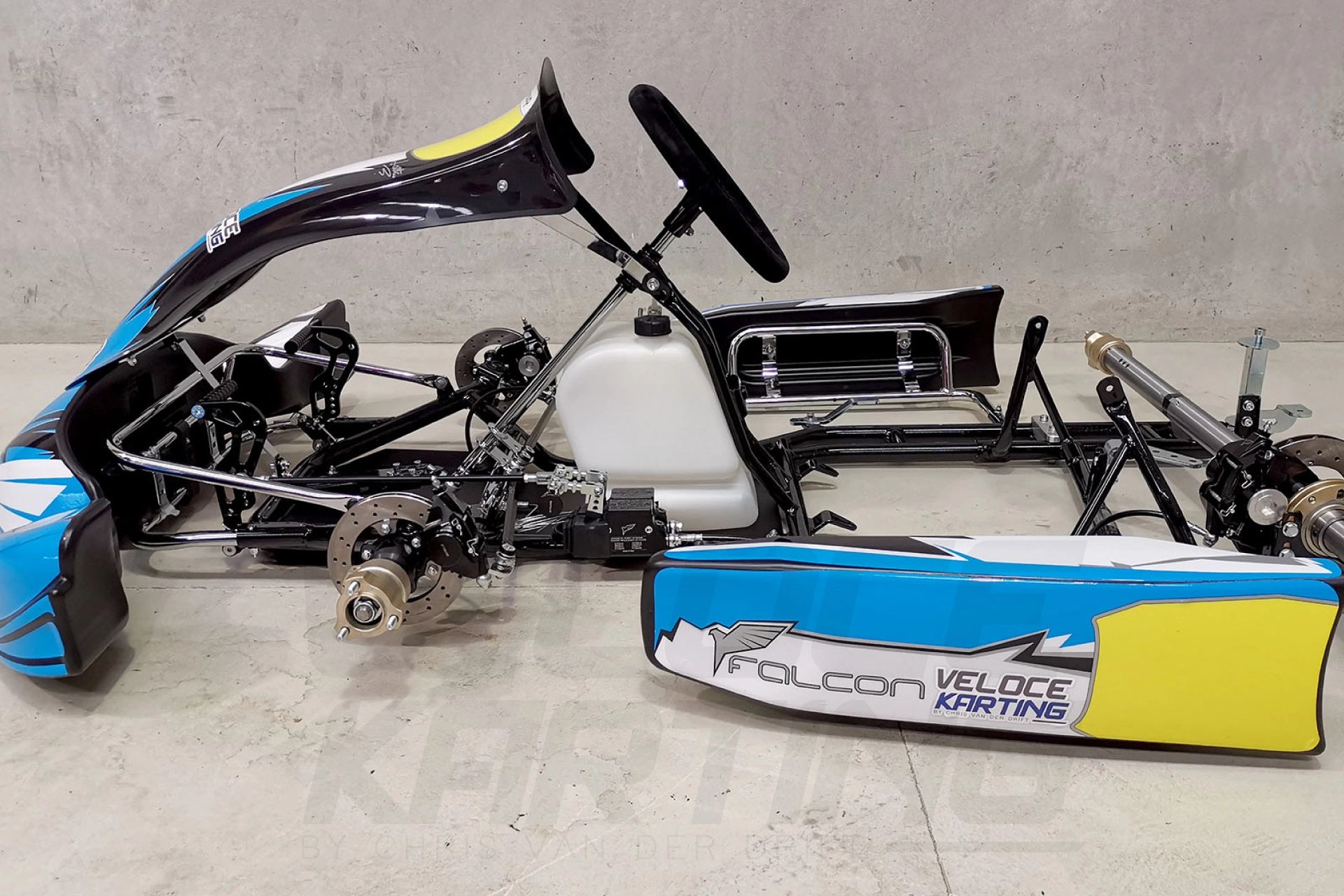

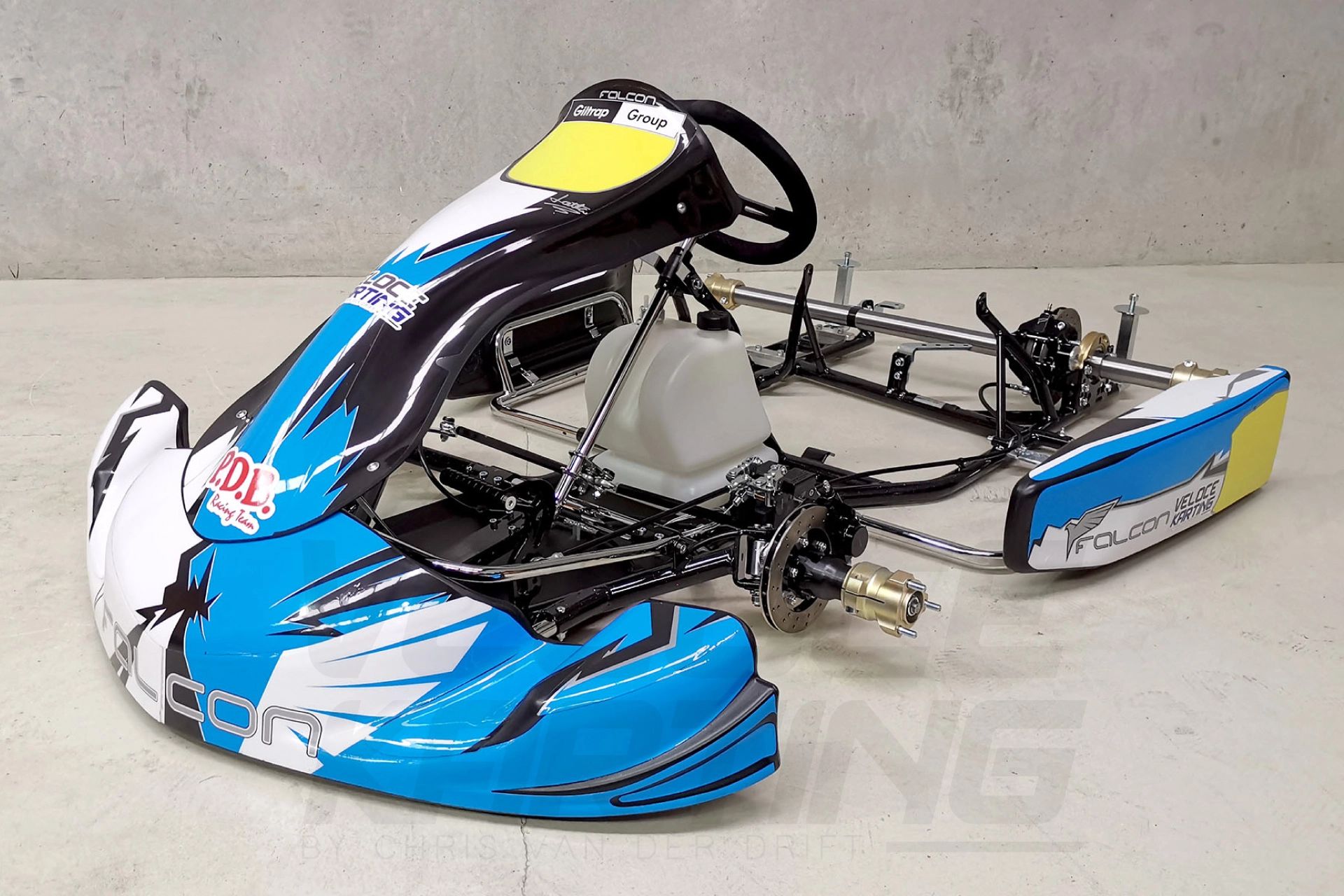

FALCON LE MANS DD2

Hết hàng
0₫

Mô tả

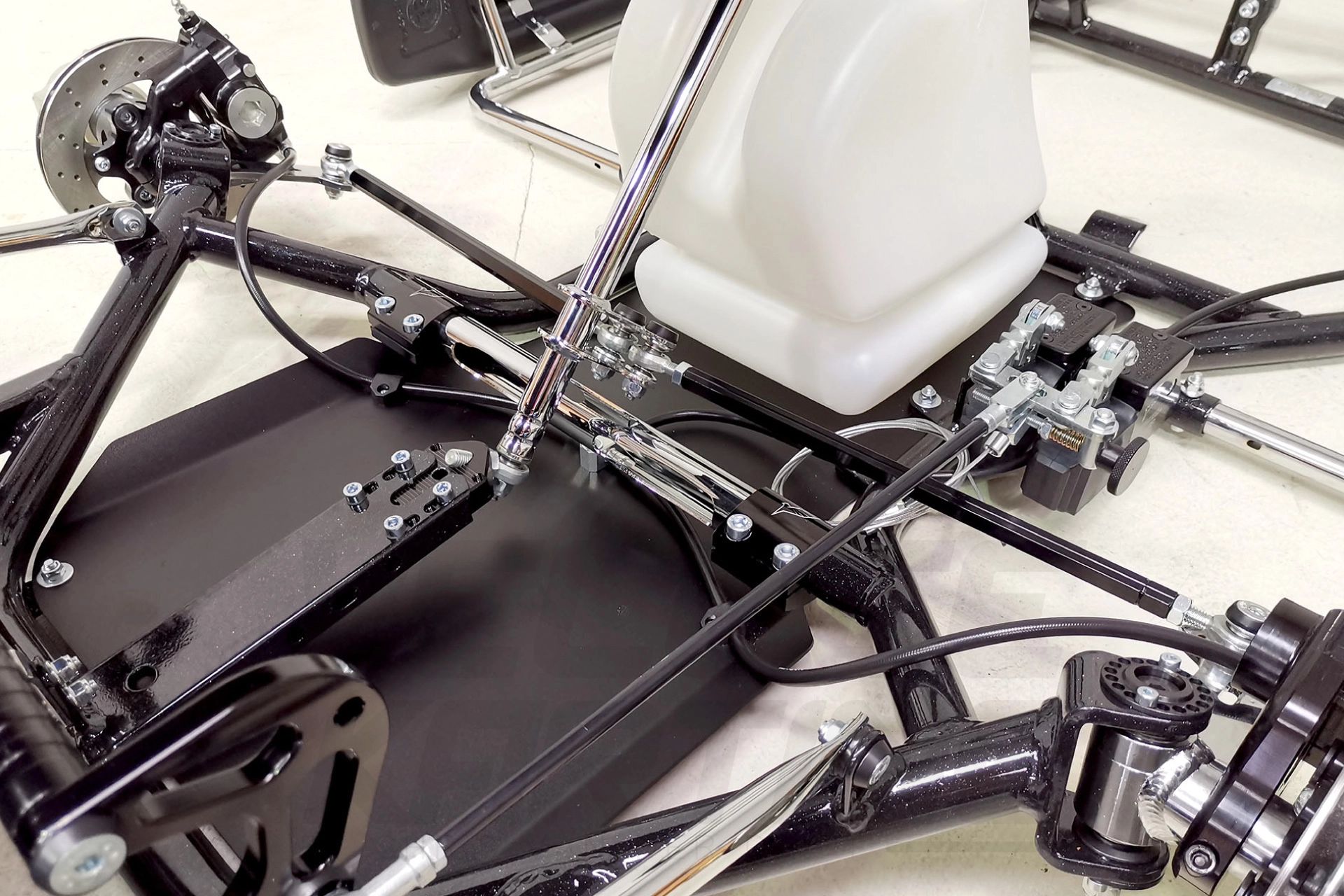

Chassis are made of seamless special CrMo steel tubes of diameters 30 mm (1.18 in). High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through state of the art CNC machines.

Components are obtained from best aluminium and magnesium solid pieces and then titanium anodized, the first being done with high-tech fully automatized machines and held to tight tolerances. All these operations are performed within Parolin Racing Kart’s facilities.

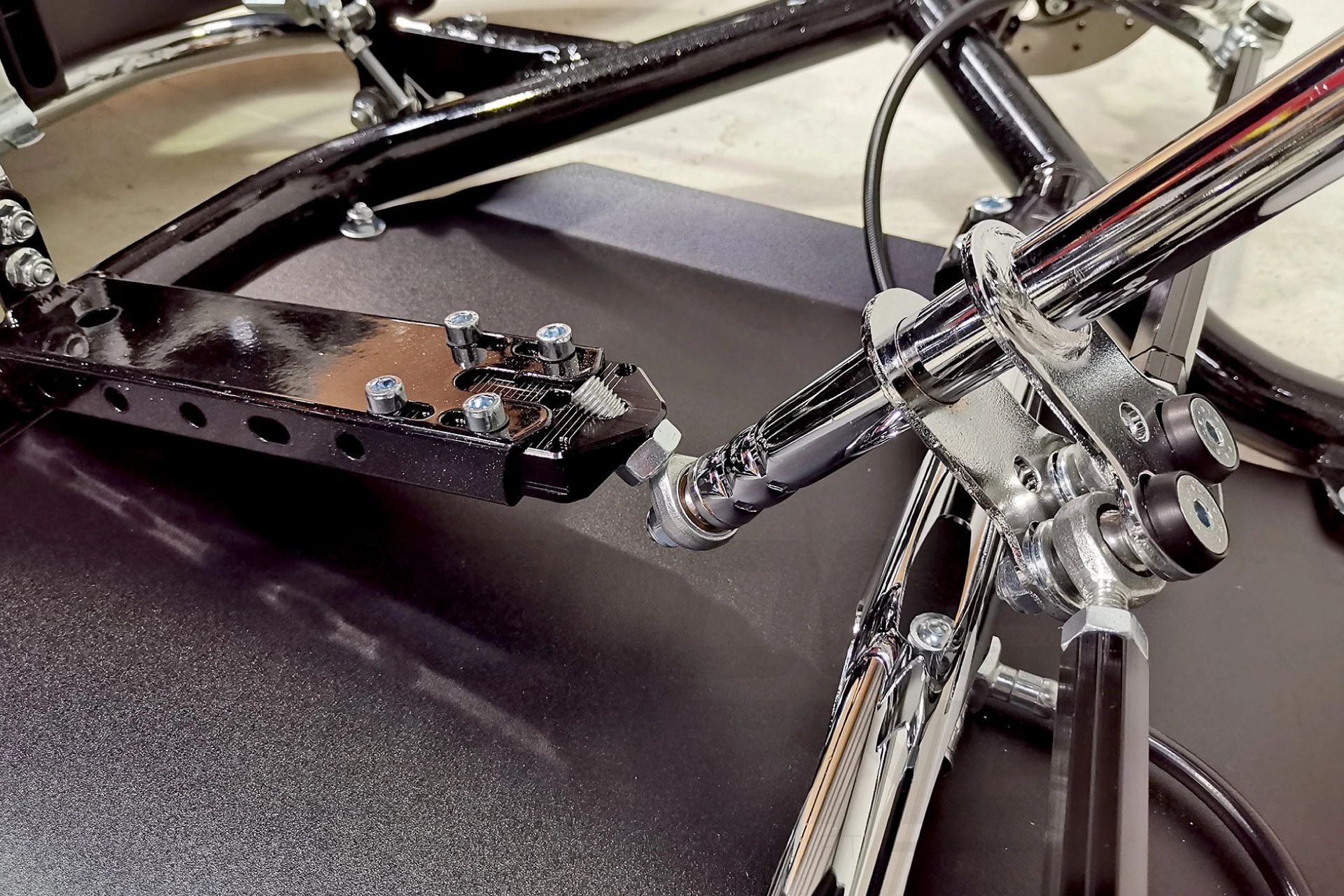

Stub axles are cut from a single steel piece. Ackerman geometry, camber and caster are easily adjustable thanks to the innovative Eurostar eccentric system. Pedals are made of aluminium and present an ultra-low friction attachment system that provides enhanced sensibility.

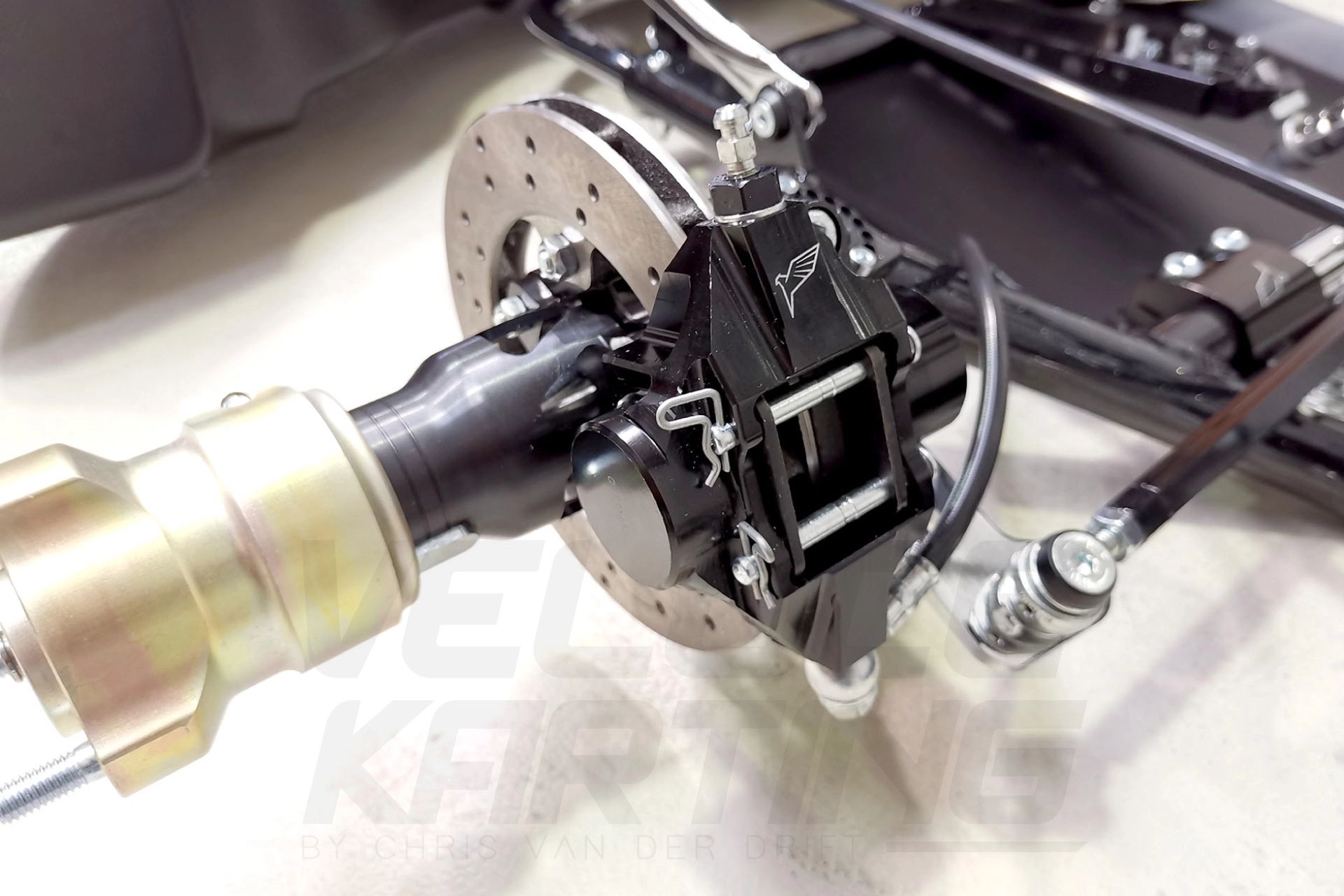

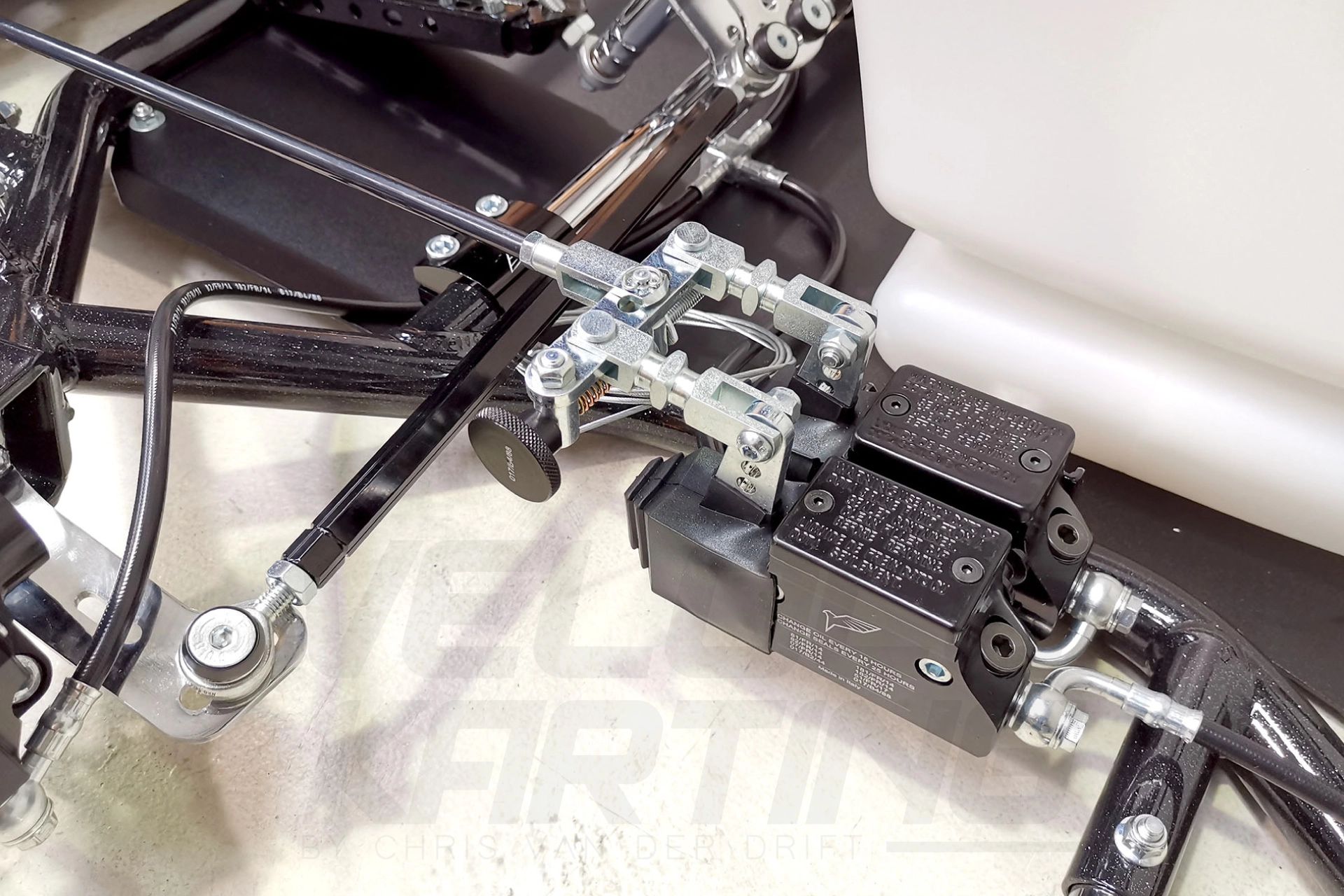

Brakes are hydraulic self-adjusting CIK FIA homologated AP RACE 06. Rear brake rotor is 194 x 18 mm or 199,5 x 12 mm in diameter & front brake rotors are 150 x 13 mm or 151,5 x 10 mm in diameter, all made of Cast Iron and ventilated. Brakes, as all components, are produced within our facilities.

It presents front and rear removable stabilizer bars in order to adjust the rigidity parameters.

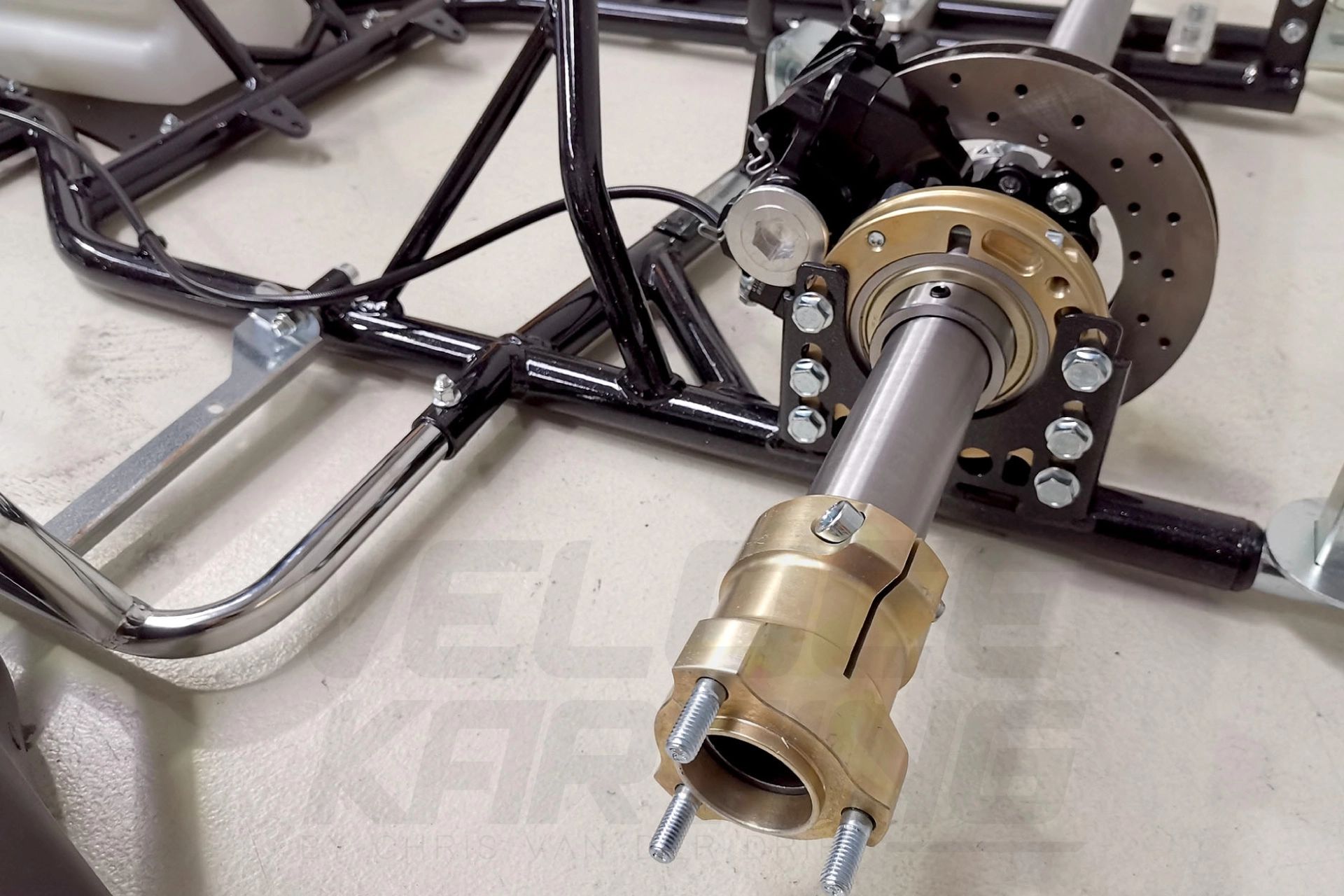

Rear axle is supported by one bearing with special cassettes and is 40mm diameter.

The new aerodynamic streamlined bodyworks Eurostar Dynamica and Wings are performed within Parolin Racing Kart's facilities.

Wheels are 210/130, made of magnesium, anodized, heat-treated and present a triple bead retention system. It presents right-left extra seat supports.



 TECHNICAL SPECIFICATIONS
  • Ø Tubes and material: Mix 30/32 x 2mm - 25 cr-mo4

  • Wheel base: 1046mm

  • Rear width: 636mm

  • Front width: 718mm

  • Length: 1530mm

  • Tank capacity: 9 litres

  • Brake system: Hydraulic self adjusting

  • Brake position: Standard

  • Rear brake disk: Ventilated 194 x 18mm

  • Front brake disks: Ventilated 152 x 10mm

  • Axle: 40 x 3 x 1040mm hollow

  • Steering wheel: 320mm black

  • Bodyworks: Eurostar Dynamica

  • Magnesium Wheels: 130-210mm

  • Homologation: 52/CH/20



The estimated delivery time is 4-5 weeks from the date of order placement.

Thời gian nhận hàng dự kiến là từ 4-5 tuần kể từ ngày đặt hàng
