MINI KART 950mm
0₫
Mô tả

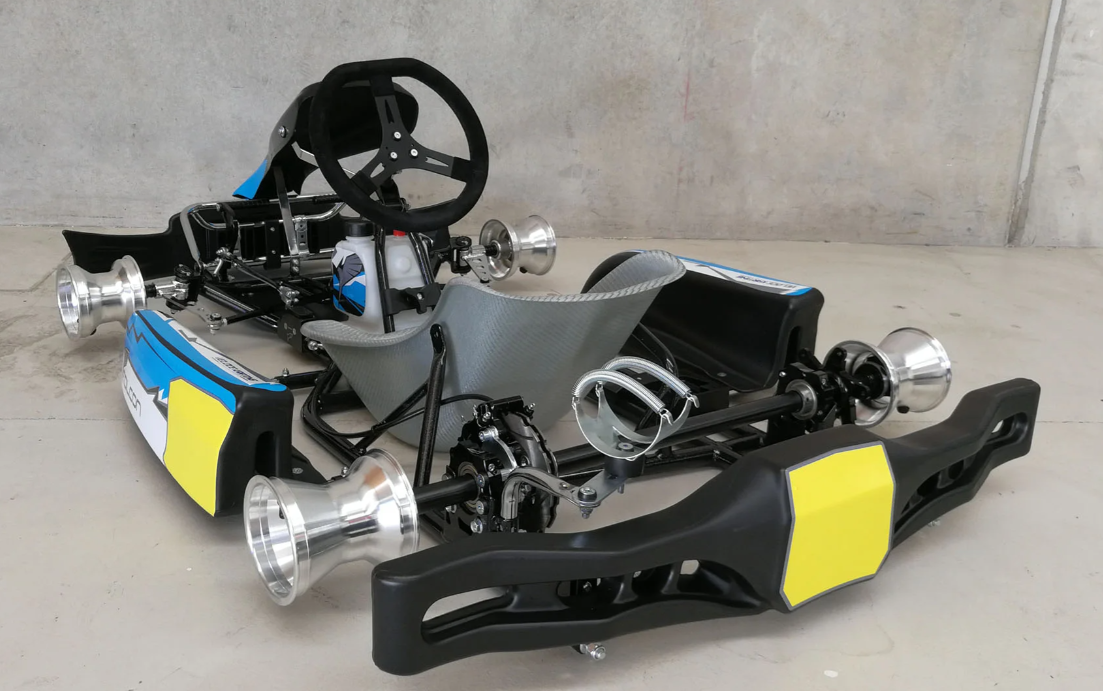

The PDB Mini Kart chassis is made of seamless special CrMo steel tubes of 28mm diameter.
High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through high-tech CNC machines. Chassis is available 950mm for Mini and Cadets.
The 30mm rear axle is supported by two bearings, and it’s available in three different pipe compounds: soft, medium and hard.
Wheels are 145/110, made of aluminium and heat-treated.
The new aerodynamic streamlined bodyworks Eurostar Mini are designed and produced within Parolin Racing Kart's facilities. The chassis is powder coated in PDB shiny black colour.
The Mini chassis is available in the motorsport version: having a self-adjusting hydraulic brake system with radial fittings and equipped with top features.
High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through high-tech CNC machines. Chassis is available 950mm for Mini and Cadets.
The 30mm rear axle is supported by two bearings, and it’s available in three different pipe compounds: soft, medium and hard.
Wheels are 145/110, made of aluminium and heat-treated.
The new aerodynamic streamlined bodyworks Eurostar Mini are designed and produced within Parolin Racing Kart's facilities. The chassis is powder coated in PDB shiny black colour.
The Mini chassis is available in the motorsport version: having a self-adjusting hydraulic brake system with radial fittings and equipped with top features.
TECHNICAL SPECIFICATIONS
Ø Tubes: 28 x 2mm
Wheel base: 950mm
Rear width: 586mm
Front width: 635mm
Length: 1300mm
Tank capacity: 4 litres
Brake system: Hydraulic self adjusting
Brake position: Rear radial fitting
Rear brake disk: 155 x 4mm
Axle: 30 x 5 x 960mm hollow
Steering wheel: 300mm black
Bodyworks: Eurostar Mini / KG MK14
Alloy Wheels: 110-145
Homologation: CSAI 08/CH/14
The estimated delivery time is 4-5 weeks from the date of order placement.
Thời gian nhận hàng dự kiến là từ 4-5 tuần kể từ ngày đặt hàng
